Stainless Steel Conveyor Chain Flat Top Chain Conveyor for Bottle Production Line

Shanghai HJ Foodnbev Machinery forces to produce all kinds of conveyor systems depending on customer needs. And all types of conveyor spare parts like the modular belt, top chain, the conveyor connection parts. Specification: Conveyor Length1-25m, depending on your project designConveyor Width0.3-3m, for

Featured Products

Shanghai HJ Foodnbev Machinery forces to produce all kinds of conveyor systems depending on customer needs.

And all types of conveyor spare parts like the modular belt, top chain, the conveyor connection parts.


Stainless Steel Conveyor Chain Flat Top Chain Conveyor for Bottle Produce Line


 Specification:

Conveyor Length1-25m, depending on your project design
Conveyor Width0.3-3m, for smaller width, we recommend use chain conveyor
Conveyor HeightAdjustable. Wheels and brake are available
Frame materialStainless steel/ Carbon steel with coating/ Aluminum
Belt materialPOM/PP plastic modular belt
Other belts PVC/PU/Mesh belt/ Plastic chain/Stainless chain all available depending on the products that transfer
MotorItaly brand/SEW/China brand
Voltage380V(415V)/50HZ(60HZ)
Certificate of equipmentSGS/FDA
Certificate of originalFORM E/F/P/A/L/M
Price termsFOB/CIF
Business typeManufacturer



Related pictures of the conveyor system



Stainless Steel Conveyor Chain Flat Top Chain Conveyor for Bottle Produce Line


Stainless Steel Conveyor Chain Flat Top Chain Conveyor for Bottle Produce Line


Stainless Steel Conveyor Chain Flat Top Chain Conveyor for Bottle Produce Line



Modular belt conveyor configuration list:

BeltFlat top or Flush grid modular belt, POM material.
Frame structureWaterproof SS 304 material frame with SS304 bearing( choose this kind frame and bearing when the goods that transfer with water). Stainless steel frame widely uses in food and beverage industry products transfer.

Frame bending without any slot at the backside. It can improve the lifetime of the conveyor.


Filler strip with stainless steel under the belt to protect the modular belt runs smoothly.  And support the belt running under high load capacity with high speed. It also can reduce the friction coefficient between the modular belt and conveyor frame.
Support legUse bow shape to make the conveyor more stable. Also can choose tripod stand
Power systemHigh-quality motor with electrical control cabinet
Automatic control
system
Can achieve functions such as lane separation, sorting, screening, classification, etc. according to your need
Conveyor designWe can fabricate according to your drawing. Also, we have a big design team that can make design for your according to your factory layout. We especially good at whole plant transportation design
Delivery time15 workdays

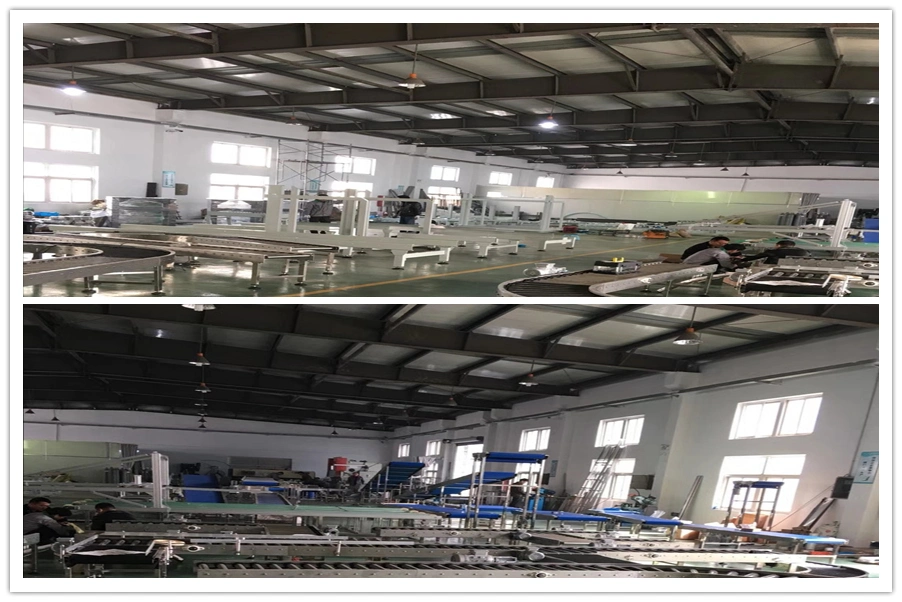

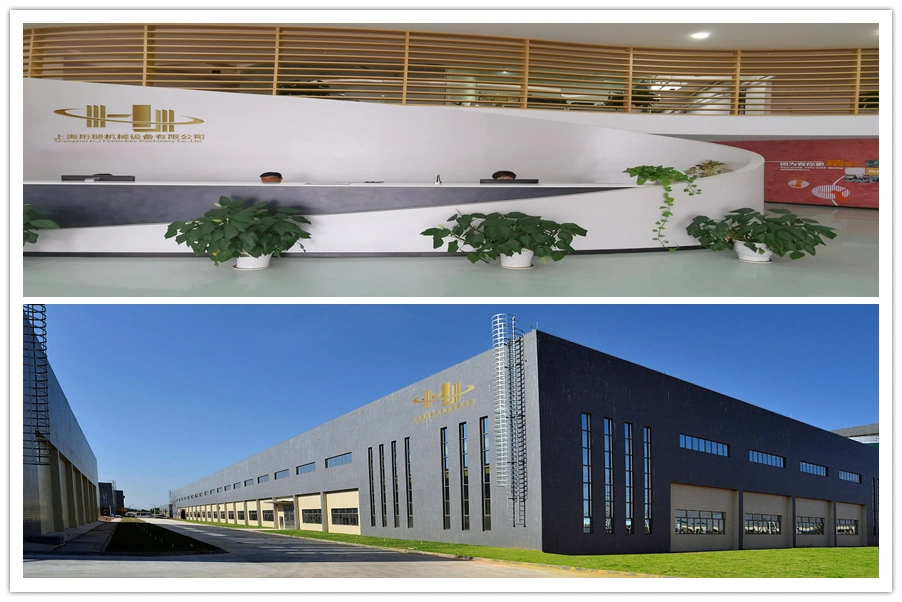

Shanghai HJ Factory and Office overview


Stainless Steel Conveyor Chain Flat Top Chain Conveyor for Bottle Produce Line
Stainless Steel Conveyor Chain Flat Top Chain Conveyor for Bottle Produce Line


Stainless Steel Conveyor Chain Flat Top Chain Conveyor for Bottle Produce Line
Stainless Steel Conveyor Chain Flat Top Chain Conveyor for Bottle Produce Line



Related products produced by Shanghai HJ Foodnbev Machinery Co.,ltd


Conveyor systemAll kinds of the automatic conveyor system
Modular beltAll kinds of modular belt, FT/FG/RIB/ROLLER TOP series
Plastic chainPlastic top chain, Flexible chain, Stainless steel chain
Industry beltPVC/PU belt, TPU belt, timing belt
Conveyor rollerStainless steel roller, PVC roller
Other conveyor spare partsGuard rails, Wear strips, Foot basis, Bearing, Connection parts

Stainless Steel Conveyor Chain Flat Top Chain Conveyor for Bottle Produce Line

Company introduces:
Shanghai H.J FoodnBev Machinery Co., Ltd focuses on providing our customers with reliable,
easy-to-use conveyor systems and related parts that meet their needs.

With our own factory which located in Shanghai, HJ products are exported to Southeast Asia,
South America, the Middle East, Europe, and also popular in the domestic market.

We approach each project with the intent of finding a better way to solve the customers' problems by listening to their individual needs, and applying what we learn to best solve their specific material handling
requirements.



We are looking forward to cooperating with you!
