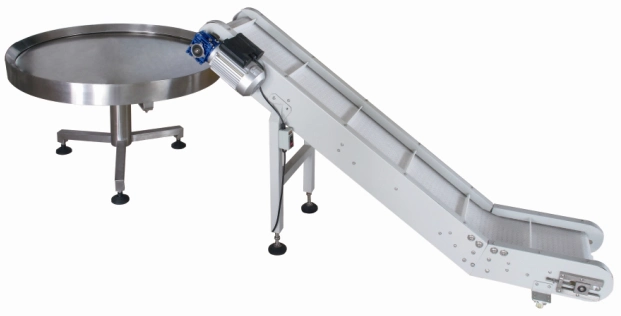

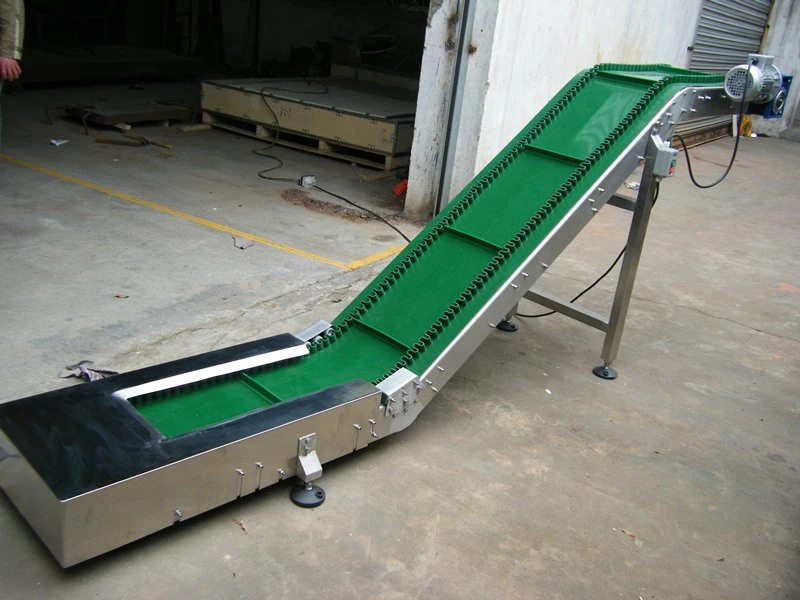

Stainless steel finished product take away conveyor
Application: Stainless steel finished product conveyor for collecting products from packaging machinery etc.
.
Features:
1.Typically used on Vertical form fill and seal machines to collect the packs as they are discharged and to raise them to a height for a metal detector / packing table etc.
2. Manufactured from stainless steel with a heavy duty PP linked belt with raised flights to prevent light products from sliding back.
2. Manufactured from stainless steel with a heavy duty PP linked belt with raised flights to prevent light products from sliding back.
Specifications
| Name | Output Conveyor |
| Belt material | Food grade PP/PU/PVC belt, non-slip belt |
| Machine structure | #304 stainless steel or carbon steel. |
| Belt width | 246mm |
| Discharge height | 892mm |
| Side baffle height | 50mm |
| Middle baffle height | 25mm |
| Production capacity | 15meters/min |
| Power supply | AC 220V Single phase / 380V, 3 Phase, 50Hz; 0.75kw |
| Packing Dimension | 1600 (L)*520 (W)*1000(H)mm |
Factory Show
Office Area
Assembly Area
Material Processing Area
Material Processing Area
Packing Area
Cases we did
About Shipping
Our services
Pre-sales
1. Within 2 hours inquiry feedback between 8:00am--20:00pm 2. 24 hours technical proposal
3. Full assistance product selection
4. Free for designing and drawing
In-sales
1. 4 times producing feedback 2. Full supervision during production
3. 24 hours standby to make sure you can find us
4. Free installation and debugging before delivery
5. Free for training operator and mechanic
After-sales
1. At least 3 times following up 2. Email or online help after good arrived
3. Oversea installation and testing is available
4. Cost price for maintaining the machine and accessories beyond one year warranty.
FAQ
- Trade terms: EXWORK,FOB,CIF,CFR
- Payment terms : T/T 30% deposit, 70% balance before delivery
- Delivery Time : Usually 25-35 days, depends on different order quantity.
- Shippment : By sea, by air ,by railway or by truck, according to customer requirement
- Packing :Bubble film wrapping inside, Export Standard Plywood Case outside.
- Warranty :One year free for replacement of wearing parts, cost price beyond warranty
